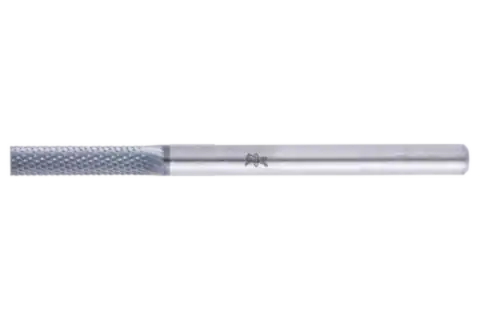

Cylindrical shape ZYA without end cut

ZYA 0313/3 MICRO HC-FEP

Item number:: 21201274
EAN:: 4007220783337

New

Technical data

Retailers-Search

Technical information

Cut: MICRO HC-FEP
Dia. external: 3 mm
Dia. shank: 3 mm
Length, cut: 13 mm
Length, total: 43 mm
RPM, grey cast iron, white cast iron: 80.000 - 95.000 RPM
RPM, hard non-ferrous metals: 60.000 - 80.000 RPM
RPM, hardened, heat-treated steels over 1,200 N/mm²: 60.000 - 80.000 RPM
RPM, high-temperature-resistant materials: 60.000 - 80.000 RPM
RPM, rust and acid-resistant steels: 48.000 - 80.000 RPM
RPM, steels up to 1,200 N/mm²: 80.000 - 95.000 RPM
Packaging unit: 1 piece

Description

Tungsten carbide burrs with the MICRO cut with high-quality HICOAT coating HC-FEP are specially designed for fine stock removal and are used in areas in which mounted/grinding points are used, for example. They offer a much higher stock removal rate than mounted/grinding points and impress with their high milled surface quality. They also operate with low vibration and little noise. They maintain their geometry over their entire tool life, and are well suited to manual and machine applications. Almost all materials up to a hardness of 68 HRC can be machined. They also allow for a longer tool life and use at higher cutting speeds in comparison with uncoated burrs.

Almost all materials up to a hardness of 68 HRC can be machined. They also allow for a longer tool life and use at higher cutting speeds in comparison with uncoated burrs.

Cylindrical burr according to DIN 8032.

Advantages

High-quality HICOAT coating for high hardness and wear resistance.
Unlike with mounted grinding points, there is no change in geometry due to wear and tear.
Use on almost all materials up to 68 HRC.
The highly accurate concentricity enables impactfree working without creating chatter marks. This considerably reduces wear on the tool and tool drive.

Recommendations for use

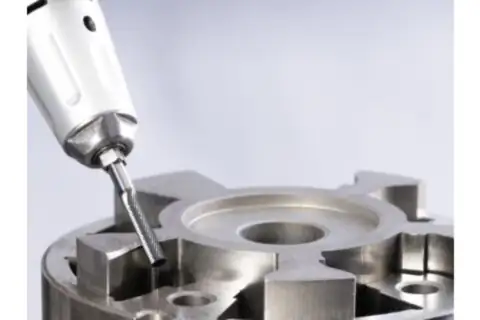

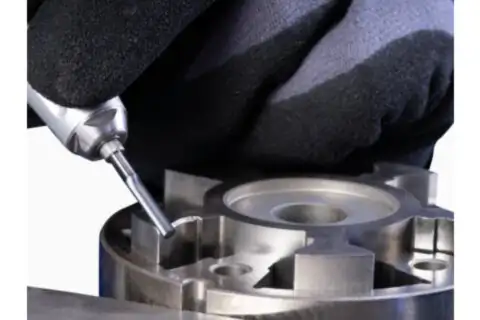

Particularly well suited to finishing, for very fine cleaning work, corrections in tool and mould construction or for sharpening cutting tools.

Materials that can be worked: Annealed cast iron; Black annealed cast iron (GTS, GJMB); Bronze; Case-hardened steels; Cast iron; Cast steel; Cobalt-based alloys; Grey/nodular cast iron (GG/GJL, GGG/GJS); Hardened, heat-treated steels over 1.200 N/mm² (< 38 HRC); Hard non-ferrous metal; Nickel-based alloys (e.g. Inconell and Hastelloy); Stainless steel (INOX); Steel; Steel, cast steel; Steels over 700 N/mm² (> 220 HB); Steels up to 1,200 N/mm² (< 38 HRC); Steels up to 700 N/mm² (< 220 HB); Titanium; Titanium alloys; Tool steels; White annealed cast iron (GTW, GJMW)

Applications: Cutting out holes; Deburring; Leveling; Milling; Milling out; Surface work; Work on weld seams

Drive types: Automated centres; Flexible shaft drive; Straight grinder; Tool machine

Downloads

Cylindrical shape ZYA without end cut

ZYA 0313/3 MICRO HC-FEP
