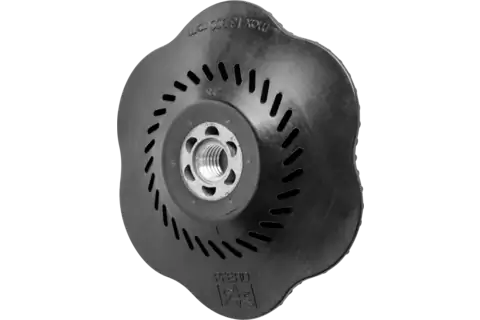

COMBICLICK backing pad dia. 115/125 mm thread M14 for angle grinders 115 and 125

Technical information

COMBICLICK backing pad dia. 115/125 mm thread M14 for angle grinders 115 and 125

Dia. thread: M14
Max. RPM: 13300 RPM
PFERD TOOLS type: CC-GT 115-125
Suitable for: Angle grinders 115 / 125, spindle M14
Suitable for diameter [mm]: 115, 125
Version: medium
Packaging unit: 1 piece

Description

With this backing pad, COMBICLICK tools can be used on commercially available angle grinders.

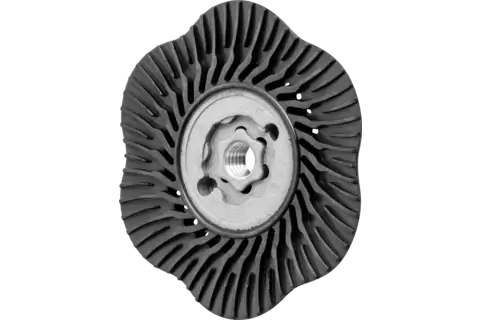

The COMBICLICK system consists of a specially developed backing pad and a rugged mounting system at the back of the tool. The unique geometry of the cooling slots ensures high air throughput, which in turn considerably reduces the thermal load on the abrasive material and the workpiece. Compared with conventional tools, the quick-mounting system, robust holder, secure tool-locking feature and integrated cooling system together achieve a workpiece temperature that is 30 % lower, a 25 % higher stock removal rate, a 30 % longer tool life, and better utilization of the abrasive material.

Hardness CC-GT (medium) = black

Advantages

The geometry of the cooling slots significantly reduces the thermal load.
High economic efficiency due to minimal tool change times.
The innovative quick-mounting system ensures convenient handling and rapid tool changing.

Recommendations for use

Type CC-H-GT is mainly used to work on stainless steel (INOX). It has a very high edge strength, which enables a higher contact pressure.

Safety notes

The maximum permitted peripheral speed is 80 m/s.
For safety reasons, the maximum permitted rotational speed indicated must never be exceeded.

Drive types: Angle grinder; Cordless angle grinder

PFERD TOOLS VALUE

PFERD TOOLS EFFICIENCY

recommends COMBICLICK for working for long periods with low levels of fatigue, whilst saving resources and achieving perfect results as quickly as possible. Tool changing and setting-up time is reduced thanks to the quick-mounting system. COMBICLICK from PFERD TOOLS is protected extensively by patents in Europe.

PFERD TOOLS ERGONOMICS

recommends COMBICLICK as an innovative tool solution to sustainably reduce the vibration, noise and dust produced during use and to improve comfort when working.
