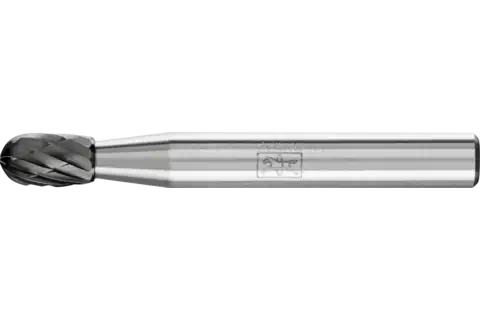

Tungsten carbide high-performance burr oval TRE dia. 06x10 mm shank dia. 6 mm Z3P HICOAT universal

Technical information

Cut: 3 PLUS HC-FEP
Dia. external: 6 mm
Dia. shank: 6 mm
Length, cut: 10 mm
Length, total: 50 mm
RPM, grey cast iron, white cast iron: 24000 - 40000 RPM
RPM, hardened, heat-treated steels over 1,200 N/mm²: 13000 - 24000 RPM
RPM, high-temperature-resistant materials: 19000 - 32000 RPM
RPM, rust and acid-resistant steels: 19000 - 24000 RPM
RPM, steels up to 1,200 N/mm²: 24000 - 40000 RPM
Radius corner design: 2.8 mm
Packaging unit: 1 piece

Description

Cut 3 PLUS with HICOAT coating HC-FEP is characterized by its high hardness and wear resistance. It enables effective chip removal through improved anti-adhesion characteristics and is highly temperature-resistant. It allows for a longer tool life and use at higher cutting speeds in comparison with uncoated burrs.

Oval burr according to DIN 8032 with cut conforming to DIN 8033.

Special features

The highly accurate concentricity enables impactfree working without creating chatter marks. This considerably reduces wear on the tool and tool drive.

Recommendations for use

To ensure costeffective use of burrs, use a higher rotational speed and cutting speed. Use burrs with a shank diameter of 6 mm with drives with a power output from 300 watts.

Materials that can be worked: Annealed cast iron; Brass; Bronze; Case-hardened steels; Cast steel; Hard aluminium alloys; Hardened, heat-treated steels over 1.200 N/mm² (< 38 HRC); Steel; Steel, cast steel; Steels over 700 N/mm² (> 220 HB); Steels up to 1,200 N/mm² (< 38 HRC); Steels up to 700 N/mm² (< 220 HB); Tool steels
