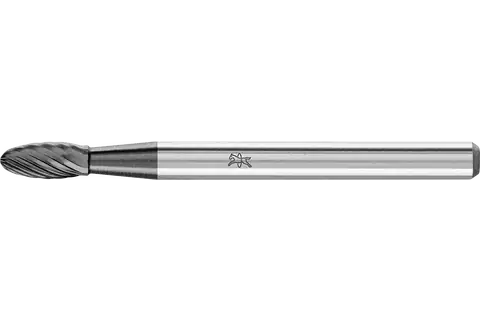

Tungsten carbide high-performance burr flame B dia. 03x07 mm shank dia. 3 mm Z3P HICOAT coated universal fine

Technical information

Cut: 3 PLUS HC-FEP
Dia. external: 3 mm
Dia. shank: 3 mm
Length, cut: 7 mm
Length, total: 37 mm
RPM, grey cast iron, white cast iron: 64000 - 80000 RPM
RPM, hard non-ferrous metals: 37000 - 48000 RPM
RPM, hardened, heat-treated steels over 1,200 N/mm²: 37000 - 48000 RPM
RPM, high-temperature-resistant materials: 37000 - 60000 RPM
RPM, rust and acid-resistant steels: 37000 - 48000 RPM
RPM, soft non-ferrous metals: 64000 - 80000 RPM
RPM, steels up to 1,200 N/mm²: 64000 - 80000 RPM
Radius corner design: 0.8 mm
Packaging unit: 1 piece

Description

Cut 3 PLUS with HICOAT coating HC-FEP is characterized by its high hardness and wear resistance. It enables effective chip removal through improved anti-adhesion characteristics and is highly temperature-resistant. It allows for a longer tool life and use at higher cutting speeds in comparison with uncoated burrs.

Flame-shaped burr according to ISO 7755/8 with cut conforming to DIN 8033.

Special features

The highly accurate concentricity enables impactfree working without creating chatter marks. This considerably reduces wear on the tool and tool drive.

Recommendations for use

If the smallest area of the burr diameter is being used, the recommended rotational speed can be increased accordingly.
To ensure costeffective use of burrs, use a higher rotational speed and cutting speed. Use burrs with a shank diameter of 3 mm with drives with a power output of 75 to 300 watts.

Materials that can be worked: Annealed cast iron; Black annealed cast iron (GTS, GJMB); Brass; Bronze; Cast iron; Cast steel; Cobalt-based alloys; Grey/nodular cast iron (GG/GJL, GGG/GJS); Hard aluminium alloys; Hardened, heat-treated steels over 1.200 N/mm² (< 38 HRC); High-temperature-resistant materials; Nickel-based alloys (e.g. Inconell and Hastelloy); Stainless steel (INOX); Steel; Steel, cast steel; Steels over 700 N/mm² (> 220 HB); Steels up to 1,200 N/mm² (< 38 HRC); Steels up to 700 N/mm² (< 220 HB); Tool steels; White annealed cast iron (GTW, GJMW)

Applications: Cutting out holes; Deburring; Leveling; Milling; Milling out; Surface work; Work on weld seams

Drive types: Automated centres; Drive spindle; Flexible shaft drive; Straight grinder; Tool machine

Downloads

Tungsten carbide burrs for general use, cut 3 PLUS HC-FEP, flame-shaped B

Tungsten carbide high-performance burr flame B dia. 03x07 mm shank dia. 3 mm Z3P HICOAT coated universal fine

B 0307/3 Z3 PLUS HC-FEP
