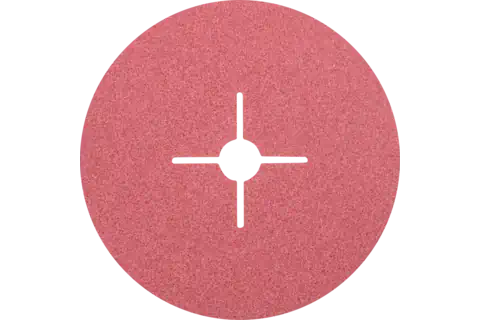

ceramic oxide grain fibre disc dia. 180mm CO60 for maximum stock removal on steel

Technical information

Abrasive: Ceramic oxide grain
Dia. external: 180 mm
Dia. hole: 22 mm
Grit size: 60
Max. RPM: 8500 RPM
PFERD TOOLS type: FS 180-22 CO 60
Packaging unit: 25 pieces

Description

PFERD TOOLS fibre discs are manufactured in accordance with ISO 16057 in shape A1 version F under the designation "vulcanized fibre disc".

For aggressive grinding with maximum stock removal rate and very long tool life. Consistently high performance due to self-sharpening ceramic oxide grain. The ceramic oxide grain is specifically designed for work on hard materials and layers.

Special features

High economic efficiency thanks to long tool life and very high stock removal rate.
Consistent surface finish thanks to high-quality abrasives.
Highly flexible, enabling optimal adjustment to the contour.

Recommendations for use

Use fibre disc in accordance with ISO 15636 with backing pad on commercially available angle grinders.
Use grinding oil that is suitable for the material in order to significantly increase the tool life and the abrasive performance of the tools.
Use powerful angle grinders.

Ordering notes

Please order backing pad separately.

Safety notes

The maximum permitted peripheral speed is 80 m/s.
For safety reasons, the maximum permitted rotational speed indicated must never be exceeded.

Materials that can be worked: Annealed cast iron; Bronze; Cast steel; Grey/nodular cast iron (GG/GJL, GGG/GJS); Hardened, heat-treated steels over 1.200 N/mm² (< 38 HRC); Steel materials with a hardness > 54 HRC; Steels up to 1,200 N/mm² (< 38 HRC); Titanium
