Fibre discs slotted

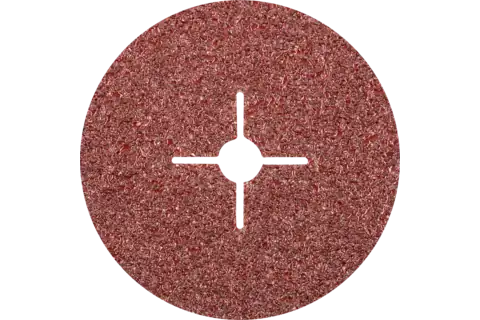

aluminium oxide fibre disc dia. 180mm A16 for general use

FS 180-22 A 16
Item number:
64101175
EAN:
4007220164945
aluminium oxide fibre disc dia. 180mm A16 for general use 1
aluminium oxide fibre disc dia. 180mm A16 for general use 2
aluminium oxide fibre disc dia. 180mm A16 for general use 1
aluminium oxide fibre disc dia. 180mm A16 for general use 2
oSa logo
Technical data Change variant
Login / Register
Retailers-Search
Choose options
Abrasive
Dia. external
Grit size
PFERD TOOLS type
Packaging unit
Reset Filter

Matching accessories & spare parts

Backing pad
Backing pad GT 180 MF M14
Backing pad
Backing pad H-GT 180 MF M14
Backing pad
Backing pad HT-GT 180 MF M14
Grinding oil
Grinding oil 410 Fe
Grinding oil
Grinding oil 411 NE
Grinding oil
Grinding oil 410/1 Fe
Grinding oil
Grinding oil 410/5 Fe
Grinding oil
Grinding oil 411/1 NE
Grinding oil
Grinding oil 411/5 NE
Grinding oil
Grinding oil 412 ALU
Grinding oil
Grinding oil 412/1 ALU
Grinding oil
Grinding oil 412/5 ALU
Technical information
aluminium oxide fibre disc dia. 180mm A16 for general use
Abrasive
Aluminium oxide A
Dia. external
180 mm
Dia. hole
22 mm
Grit size
16
Max. RPM
8500 RPM
PFERD TOOLS type
FS 180-22 A 16
Packaging unit
25 pieces
Description

PFERD TOOLS fibre discs are manufactured in accordance with ISO 16057 in shape A1 version F under the designation "vulcanized fibre disc".

For general grinding work from coarse to fine grinding in industry and professional trades.
Special features
  • High economic efficiency thanks to long tool life and very high stock removal rate.
  • Consistent surface finish thanks to high-quality abrasives.
  • Highly flexible, enabling optimal adjustment to the contour.
Recommendations for use
  • Use fibre disc in accordance with ISO 15636 with backing pad on commercially available angle grinders.
  • Use grinding oil that is suitable for the material in order to significantly increase the tool life and the abrasive performance of the tools.
Ordering notes
  • Please order backing pad separately.
Safety notes
  • The maximum permitted peripheral speed is 80 m/s.
  • For safety reasons, the maximum permitted rotational speed indicated must never be exceeded.
Materials that can be worked
Aluminium
Annealed cast iron
Brass
Cast steel
Copper
Grey/nodular cast iron (GG/GJL, GGG/GJS)
Hardened, heat-treated steels over 1.200 N/mm² (< 38 HRC)
Steel materials with a hardness > 54 HRC
Steels up to 1,200 N/mm² (< 38 HRC)
Applications
Deburring
Leveling
Step-by-step fine grinding
Surface work
Working on edges
Work on weld seams
Drive types
Angle grinder
Cordless angle grinder
Drive spindle
Downloads
252045_aufkleber-sicherheitshinweise-fiberschleifer-print.pdf safety-pdf-cat-4-de-en.pdf wzh26-catalogue-4-web-en-int.pdf
See more

Matching tool drive

Robot spindles for stationary application PGAS 11/58 RS
Robot spindles for stationary application PGAS 11/58 RS PGAS 11/58 RS
