Technical information

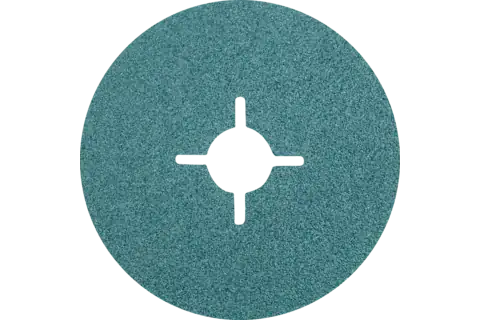

Zirkon fibre disc dia. 115 mm Z60 for high stock removal on steel

Abrasive: Zirconia alumina Z
Dia. external: 115 mm
Dia. hole: 22 mm
Grit size: 60
Max. RPM: 13300 RPM
PFERD TOOLS type: FS 115-22 Z 60
Packaging unit: 25 pieces

Description

PFERD TOOLS fibre discs are manufactured in accordance with ISO 16057 in shape A1 version F under the designation "vulcanized fibre disc".

For coarse grinding work with a high stock removal rate and a long tool life.

Special features

High economic efficiency thanks to long tool life and very high stock removal rate.
Consistent surface finish thanks to high-quality abrasives.
Highly flexible, enabling optimal adjustment to the contour.

Recommendations for use

Use fibre disc in accordance with ISO 15636 with backing pad on commercially available angle grinders.
Use grinding oil that is suitable for the material in order to significantly increase the tool life and the abrasive performance of the tools.
Use powerful angle grinders in the case of a higher contact pressure.

Ordering notes

Please order backing pad separately.

Safety notes

The maximum permitted peripheral speed is 80 m/s.
For safety reasons, the maximum permitted rotational speed indicated must never be exceeded.

Materials that can be worked: Annealed cast iron; Brass; Bronze; Cast steel; Cobalt-based alloys; Copper; Grey/nodular cast iron (GG/GJL, GGG/GJS); Hardened, heat-treated steels over 1.200 N/mm² (< 38 HRC); Stainless steel (INOX); Steel materials with a hardness > 54 HRC; Steels up to 1,200 N/mm² (< 38 HRC); Titanium

Applications: Deburring; Leveling; Step-by-step fine grinding; Surface work; Working on edges; Work on weld seams

Drive types: Angle grinder; Cordless angle grinder; Drive spindle
