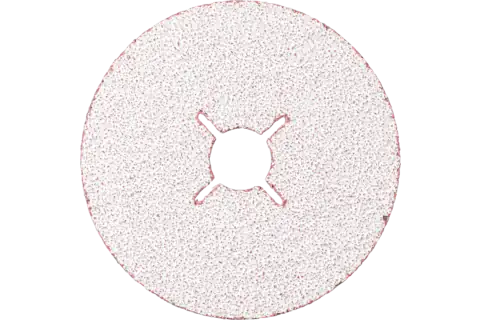

Ceramic oxide grain fibre disc dia. 115 mm CO-ALU36 for soft non-ferrous metals

Technical information

Abrasive: Ceramic oxide grain CO-ALU
Dia. external: 115 mm
Dia. hole: 22 mm
Grit size: 36
Max. RPM: 13300 RPM
PFERD TOOLS type: FS 115-22 CO-ALU 36
Packaging unit: 25 pieces

Description

PFERD TOOLS fibre discs are manufactured in accordance with ISO 16057 in shape A1 version F under the designation "vulcanized fibre disc".

For aggressive grinding with maximum stock removal rate for machining non-ferrous metals. Consistently high performance due to self-sharpening ceramic oxide grain. Adhesion-reducing additives in the coating significantly reduce the chip adhesion and therefore reduce clogging of the fibre discs.

Special features

High economic efficiency thanks to long tool life and very high stock removal rate.
Consistent surface finish thanks to high-quality abrasives.
Highly flexible, enabling optimal adjustment to the contour.

Recommendations for use

Use fibre disc in accordance with ISO 15636 with backing pad on commercially available angle grinders.
Use grinding oil that is suitable for the material in order to significantly increase the tool life and the abrasive performance of the tools.

Ordering notes

Please order backing pad separately.

Safety notes

The maximum permitted peripheral speed is 80 m/s.
For safety reasons, the maximum permitted rotational speed indicated must never be exceeded.

Materials that can be worked: Aluminium; Brass; Copper; Hard aluminium alloys; Other non-ferrous metals; Soft aluminium alloys; Tough aluminium alloys; Zinc
