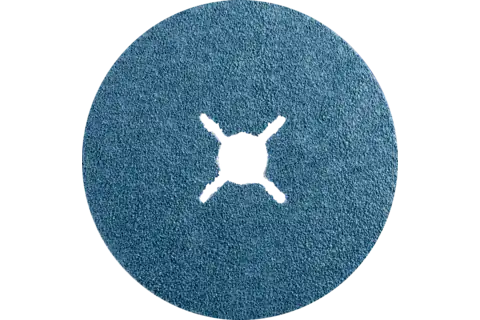

fibre disc dia. 100mm VICTOGRAIN 80 for maximum performance on steel

Technical information

fibre disc dia. 100mm VICTOGRAIN 80 for maximum performance on steel

Abrasive: VICTOGRAIN
Dia. external: 100 mm
Dia. hole: 16 mm
Grit size: 80
Max. RPM: 15300 RPM
PFERD TOOLS type: FS 100-16 VICTOGRAIN 80
Packaging unit: 25 pieces

Description

PFERD TOOLS fibre discs are manufactured in accordance with ISO 16057 in shape A1 version F under the designation "vulcanized fibre disc".

For maximum aggressive grinding with an extremely long tool life and an outstanding stock removal rate on steel and hard materials. Outstanding, constant high performance thanks to the VICTOGRAIN abrasive grain.

The VICTOGRAIN abrasive triangles are fixed to the substrate on one of their sides. This means they are securely fixed in place and, together with their slim design, offer an extremely large chip space in order to further improve machining efficiency. The structure of the triangular VICTOGRAIN has also been specially adapted to maximize results. The very small crystals inside the triangles ensure optimal wear characteristics as sharp cutting edges are always exposed, but only the minimum amount of abrasive grain/the triangle breaks off. By combining all these properties together, users benefit from the ultimate, constant performance during cool grinding and an extremely long tool life together with consistent workpiece surface roughness.

Special features

High economic efficiency thanks to long tool life and very high stock removal rate.
Consistent surface finish thanks to high-quality abrasives.
Highly flexible, enabling optimal adjustment to the contour.
Efficient machining process with fast work progress, long tool life, less heat build-up in the workpiece, and a lower power output required for the tool drive thanks to VICTOGRAIN abrasive grain.

Recommendations for use

Use fibre disc in accordance with ISO 15636 with backing pad on commercially available angle grinders.
Use grinding oil that is suitable for the material in order to significantly increase the tool life and the abrasive performance of the tools.

Ordering notes

Please order backing pad separately.

Safety notes

The maximum permitted peripheral speed is 80 m/s.
For safety reasons, the maximum permitted rotational speed indicated must never be exceeded.

Materials that can be worked: Cast steel; Hardened, heat-treated steels over 1.200 N/mm² (< 38 HRC); Hard non-ferrous metal; Nickel-based alloys (e.g. Inconell and Hastelloy); Steel; Steel, cast steel; Steels up to 1,200 N/mm² (< 38 HRC)
