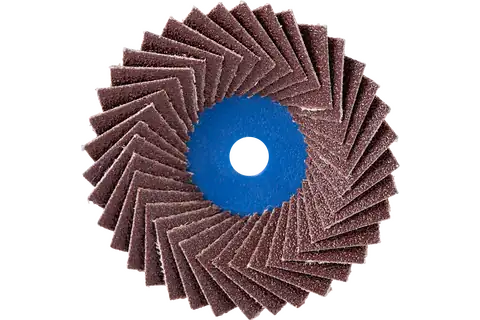

COMBIDISC aluminium oxide Mini-POLIFAN CD dia. 50mm A120 for general use

Contact Us +49 2264 9-0 info@pferd.com

Technical information

COMBIDISC aluminium oxide Mini-POLIFAN CD dia. 50mm A120 for general use

Abrasive: Aluminium oxide A
Clamping system: CD system
Dia. external: 50 mm
Grit size: 120
RPM, optimum: 12000 - 14000 RPM
Packaging unit: 10 pieces

Description

For general coarse grinding work with high stock removal rates. Ideal for dressing weld seams in hard-to-reach places.

Longer tool life and higher stock removal rate when compared to abrasive discs.

Special features

High economic efficiency as tool can be changed quickly.
Ideally suited to grinding smaller fillet weld geometries.
Particularly suitable for contour grinding due to the flexible arrangement of the flaps.

Recommendations for use

Use COMBIDISC Mini-POLIFAN FLEX discs with an arbor on flexible shaft drives with an angle handpiece, or small air-powered or electric angle grinders.
Use grinding oil that is suitable for the material in order to significantly increase the tool life and the abrasive performance of the tools.

Ordering notes

Please order compatible arbor separately.

Safety notes

The maximum permitted peripheral speed is 50 m/s.
For safety reasons, the maximum permitted rotational speed indicated must never be exceeded.

Materials that can be worked: Annealed cast iron; Brass; Bronze; Cast steel; Copper; Fibre-reinforced thermosetting plastics (GRP, CRP); Grey/nodular cast iron (GG/GJL, GGG/GJS); Hardened, heat-treated steels over 1.200 N/mm² (< 38 HRC); Stainless steel (INOX); Steel materials with a hardness > 54 HRC; Steels up to 1,200 N/mm² (< 38 HRC); Thermoplastics; Titanium; Titanium alloys

Applications: Deburring; Leveling; Roughening; Sharpening; Step-by-step fine grinding; Surface work; Working on edges; Work on weld seams

Drive types: Angle grinder; Cordless angle grinder; Drive spindle; Flexible shaft drive; Straight grinder
